Yeastar S20 + 2 FXO - Standard Téléphonique IP-PBX Hybride (20 Utilisateurs / 10 Appels Simultanés - 2 Lignes Analogiques FXO Incluses) - SVI & Enregistrement - App Linkus - Téléphonie Entreprise Pro

Email à un ami

Yeastar S20 + 2 FXO - Standard Téléphonique IP-PBX Hybride (20 Utilisateurs / 10 Appels Simultanés - 2 Lignes Analogiques FXO Incluses) - SVI & Enregistrement - App Linkus - Téléphonie Entreprise Pro

Marques:Yeastar

(0 reviews)

215.000 CFA

SKU: YEASTAR S20 + 2FXO
Categories:Téléphone IP / SIP et accessoires

Fiche Technique Officielle (Yeastar S20 + 2 FXO)

Type de Produit : IP-PBX / Central Téléphonique IP Hybride Compact.
Capacité Systèmes & Communications :
- Utilisateurs / Extensions : Jusqu'à 20 utilisateurs.
- Appels simultanés : Jusqu'à 10 appels en parallèle.
- Comptes Trunks SIP : Jusqu'à 20 trunks SIP (Opérateurs VoIP).
Configuration des Ports (Module fourni) :
- 2 ports FXO (Module O2 inclus) : Permet de raccordement direct de 2 lignes téléphoniques analogiques PSTN / R T C d'opérateur fixe.
- Architecture modulaire (2 emplacements de modules / cartes pour extensions FXS, FXO, ISDN BRI ou GSM/3G/4G).
Fonctionnalités Téléphoniques Avancées :
- Serveur Vocal Interactif (SVI / IVR) multi-niveaux.
- Message sur attente, enregistrement d'appels, messagerie vocale vers email (Voice-to-Email).
- Groupes d'appels, file d'attente, transfert/renvoi d'appel et numérotation abrégée.
Réseau & Sécurité :
- Ports réseau : 2 ports Ethernet RJ45 ( $$10/100$$ Mbps) avec modes Router / Switch / Dual.
- Sécurité : Pare-feu intégré, TLS, SRTP, VPN (OpenVPN/IPsec) et protection contre les attaques Brute Force (Fail2ban).
Gestion & Design :
- Interface d'administration Web intuitive et prise en charge de l'application mobile/desktop Linkus (Softphone).
- Boîtier métallique compact ultra-silencieux (Fanless) à faible consommation d'énergie.

Description
Commentaires (0)

S20 Overview

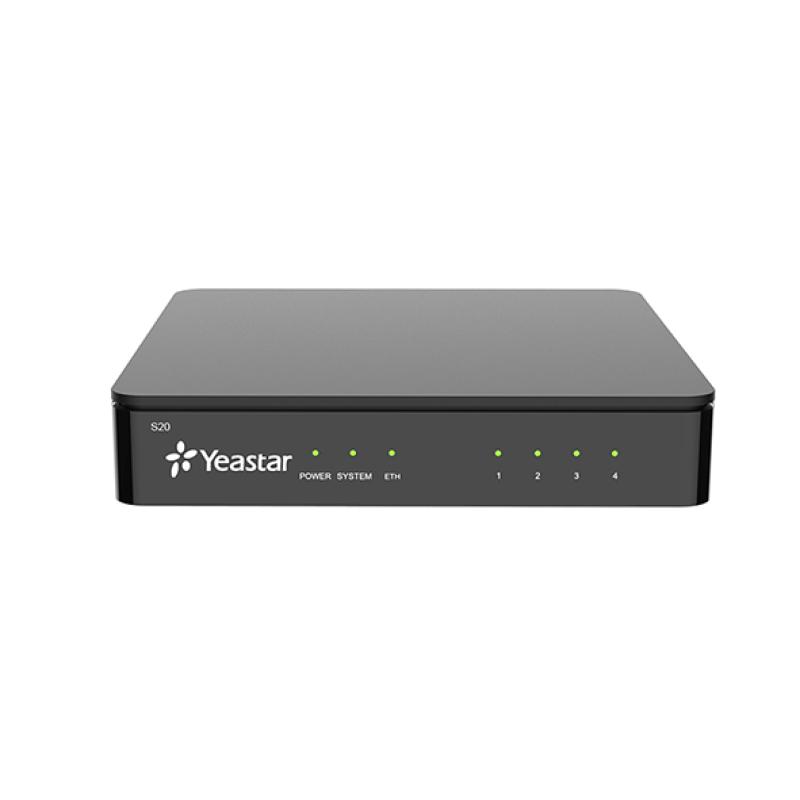

Front Panel

LED	Indication	Status	Description
POWER	Power status	On	The power is switched on.
POWER	Power status	Off	The power is switched off.
SYSTEM	System status	Blinking	The system is running properly.
SYSTEM	System status	Static/Off	The system goes wrong.
WAN	WAN status	Static	Linked normally.
		Blinking	In communication.
		Off	Off-line.
LAN	LAN status	Static	Linked normally.
		Blinking	In communication.
		Off	Off-line.
1-4 (Telephony ports)	FXS	Green: static	The analog phone is idle.
	FXS	Green: blinking	The analog phone is busy.
	GSM/3G/4G	Red: static	The GSM/3G/4G Trunk is idle.
		Red: blinking slowly	No SIM card.
		Red: blinking rapidly	The GSM/3G/4G trunk is in use.
	BRI	Orange: blinking	The BRI line is disconnected.
	BRI	Orange: static	The BRI line is connected or in use.
	FXO	Red: static	The PSTN line is idle.
		Red: blinking slowly	No PSTN line is connected to the FXO port.
		Red: blinking rapidly	The PSTN line is busy.

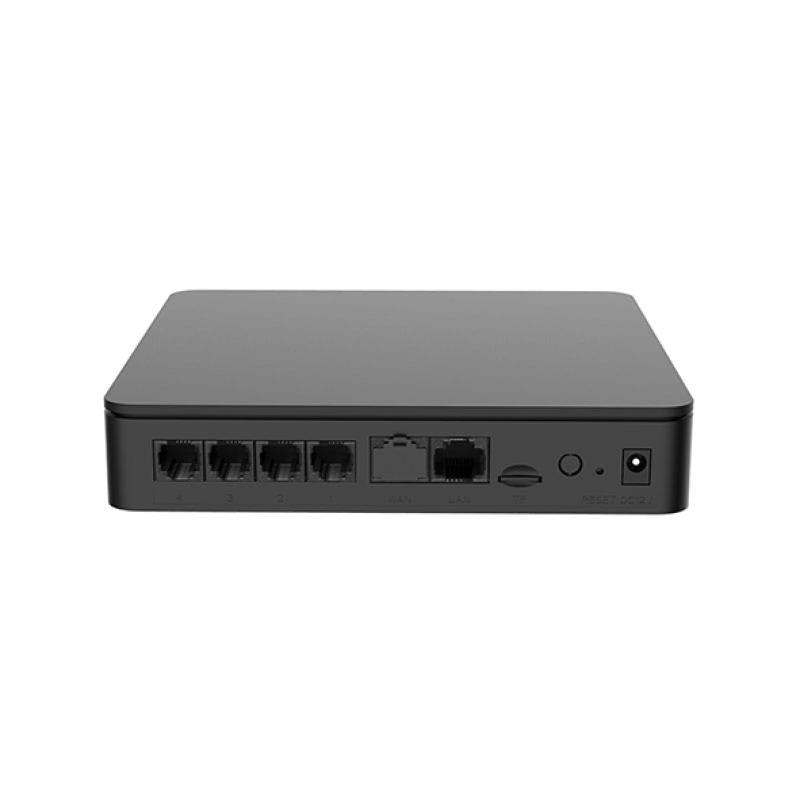

Rear Panel

Port	Description
RJ11	FXO port (red light): For the connection of PSTN lines or FXS ports of traditional PBX. FXS port (green light): For the connection of analog phones. BRI port (orange light): For the connection of ISDN BRI lines. Note: The sequence number of the ports corresponds to that of the Indicator lights in the front panel. (I.e. the LED lights in the front indicate the connection status of the corresponding ports at the back panel.)
WAN/LAN	Yeastar S20 provides two 10/100Mbps adaptive RJ45 Ethernet ports, and supports 3 Ethernet modes. The default mode is “Single”. Single: LAN port will be used for uplink connection. WAN port is disabled. Bridge: LAN port will be used for uplink connection. WAN port will be used as bridge for PC connection. Dual: Both LAN and WAN ports can be used for uplink connection.
TF Slot	Insert TF card to store auto recording files.
Antenna Socket	Rotate the antenna into the Antenna Socket.
Reset Button	Press and hold for 10 seconds to restore the factory defaults.
Power Inlet	Connect the supplied power supply to the port.
